Name: Pellet-Ext-S3 3KG/H Extruder
SKU: 1706
Price: 4887.00 USD
Availability: InStock

Pellet-Ext-S3 3KG/H Extruder

$4,887.00

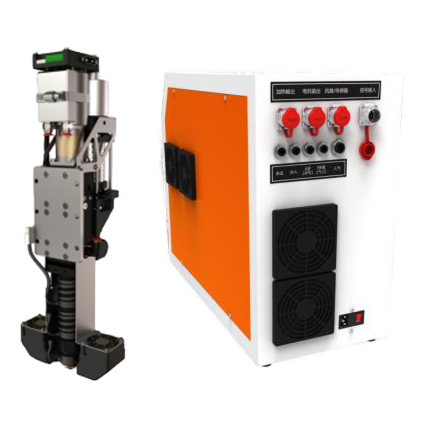

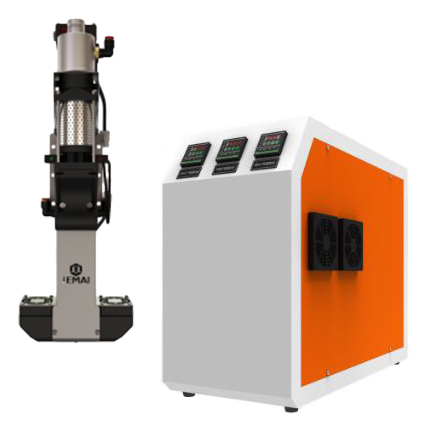

(3KG/H) Pellet Ext S3: Extruder+Controller

Pellet Ext S3 Extruder Set is specially designed for unlimited build size pellet extrusion with specifications below:-

Weight: 5.5KG

Size: 473x168x128 mm

Screw Size: D27xL275 mm

Screw Heating Temperature: 300°C, 3 Heating Zones

Cooling Method: Water Cooling (Insulation Section) + Air Cooling (Model Heat Dissipation)

Maximum Throughput: 3KG/H

Applicable Nozzle: 1,2,4,6,8,10 mm

Power Supply: 24V 890W

Screw Motore Torque: 0.96N.m

Description

Controller

Weight: 12kg

Size: H495 x W280 x L620 mm

Compressed Air Inlet Pressure Requirement: 0.6-0.8 Mpa

Compressed Air Inlet Humidity Requirement: <20% RH

Compressed Air Inlet Flow Requirement: >0.45m³/min

Power Supply: 220V/50HZ

Total Power: 950W

Built-in: Circulating Liquid Cooling System, Feeding Control System,

3 sets of 1000W Heating Temperature Controllers, Servo Driver 600W, 12V100W Fan Controller

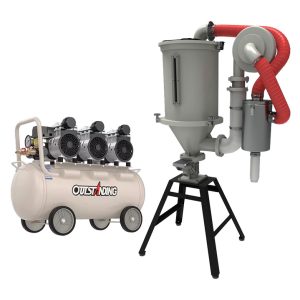

Hopper Dryer 25kg & Air Compressor for Pellet Ext S3

(can be purchase as optional)
